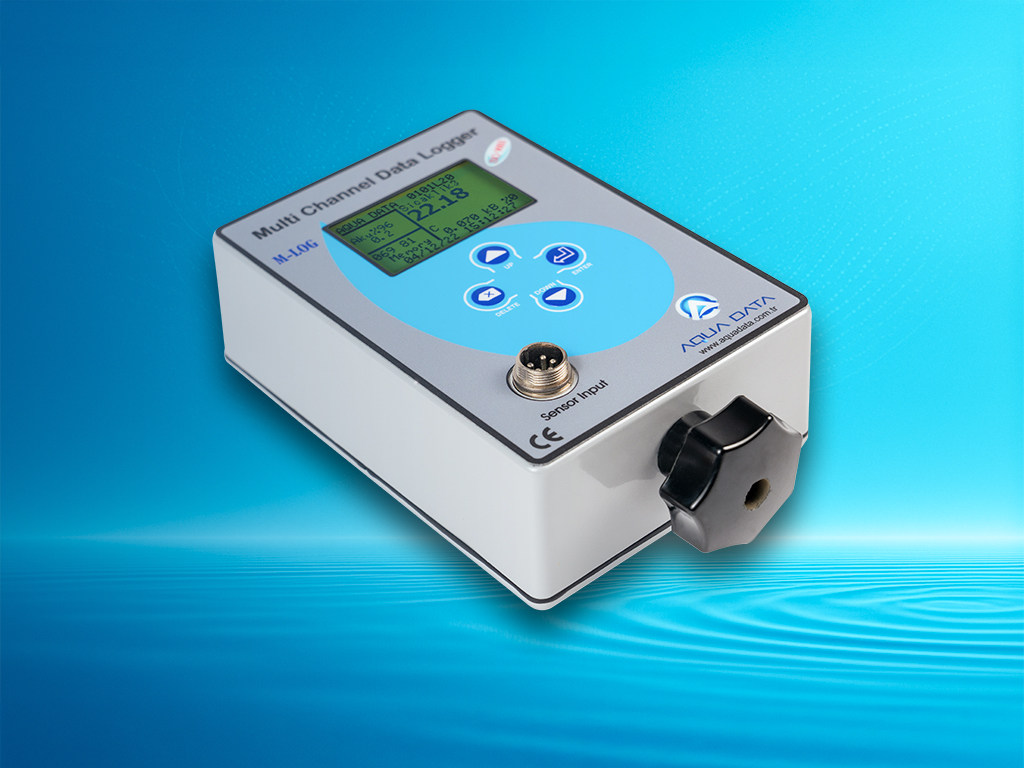

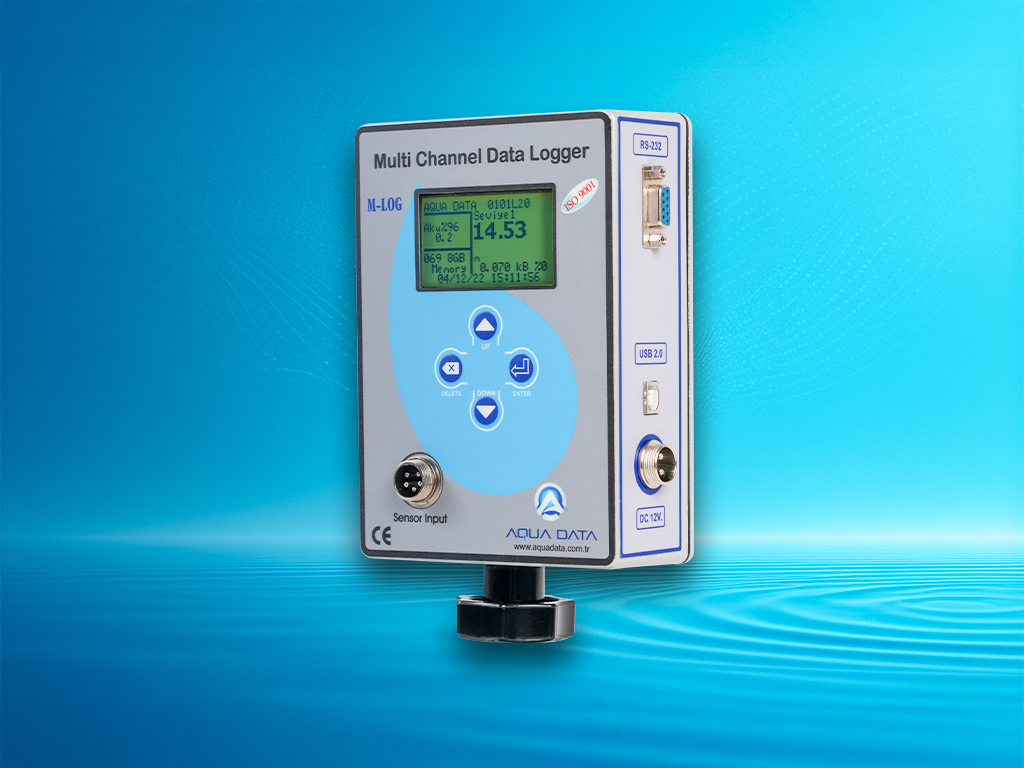

M-LOG

M-LOG

Compatible with all sensors with VOLTAGE, CURRENT AND DIGITAL output.

  9 Channel

  5 analog, 2 digital, 1 humidity, 1 temperature sensor inputs

  Analog input: 4…20 mA and 0…2.5 V.

  Digital Input: Can measure pulse, frequency and period

  1 x Analog Output 4...20 mA.

  Digital resolution for 24-bit analog

  Each channel can be calibrated and changed by computer software

  Channel names and units can be entered via software for each channel.

  2 x Digital Outputs (for alarm and motor control)

  Maximum 100 mA with transistor NPN output.

  Recording Interval:1…1440 minutes. Each channel recording

  range can be adjusted via software

  128x64 bit Graphic Dot Matrix LCD display

  Battery, current level, status of all channels and memory details can be seen on the screen at the same time.

  Record values ​​can be seen on the screen with 4 keypads.

  RS-485 port is available for instant values ​​and remote interface

  Interface: RS-232, USB (Virtual Com port (CDC)) available

2 types of recording systems:

  Instant Recording and Average Recording Per Minute

  Instant and Instant Min. and Max. Values, Daily Average, and

  Daily Min. and Max. Values ​​are recorded

  min. and Max. values ​​can be adjusted instantly and from the record via computer program

  Memory Capacity: 8 GB

  It has Data Flash Technology. Absolutely no deletion.

  The data storage period is 100 years.

  Memory Capacity: Total 1,334.000 pieces of data

  There is no data loss when the battery is removed or dead. Recording from where it left off when the energy comes

  continues

  Power Supply: 8…32 VDC

  Energy Consumption: Average 10 mA under normal conditions.

  Time Error: ±1 minute/year deviation RTC

  Operating Temperature: - 40 °C to + 80 °C and 95% humidity

  Protection Class: IP: 65

  GSM/GPRS modem can be connected via serial port, data exchange and setup can be done.
