Evaporation Pan
Manually measures the amount of evaporation on the water surface.
- Info
- Techspecs
- Gallery
- Documents

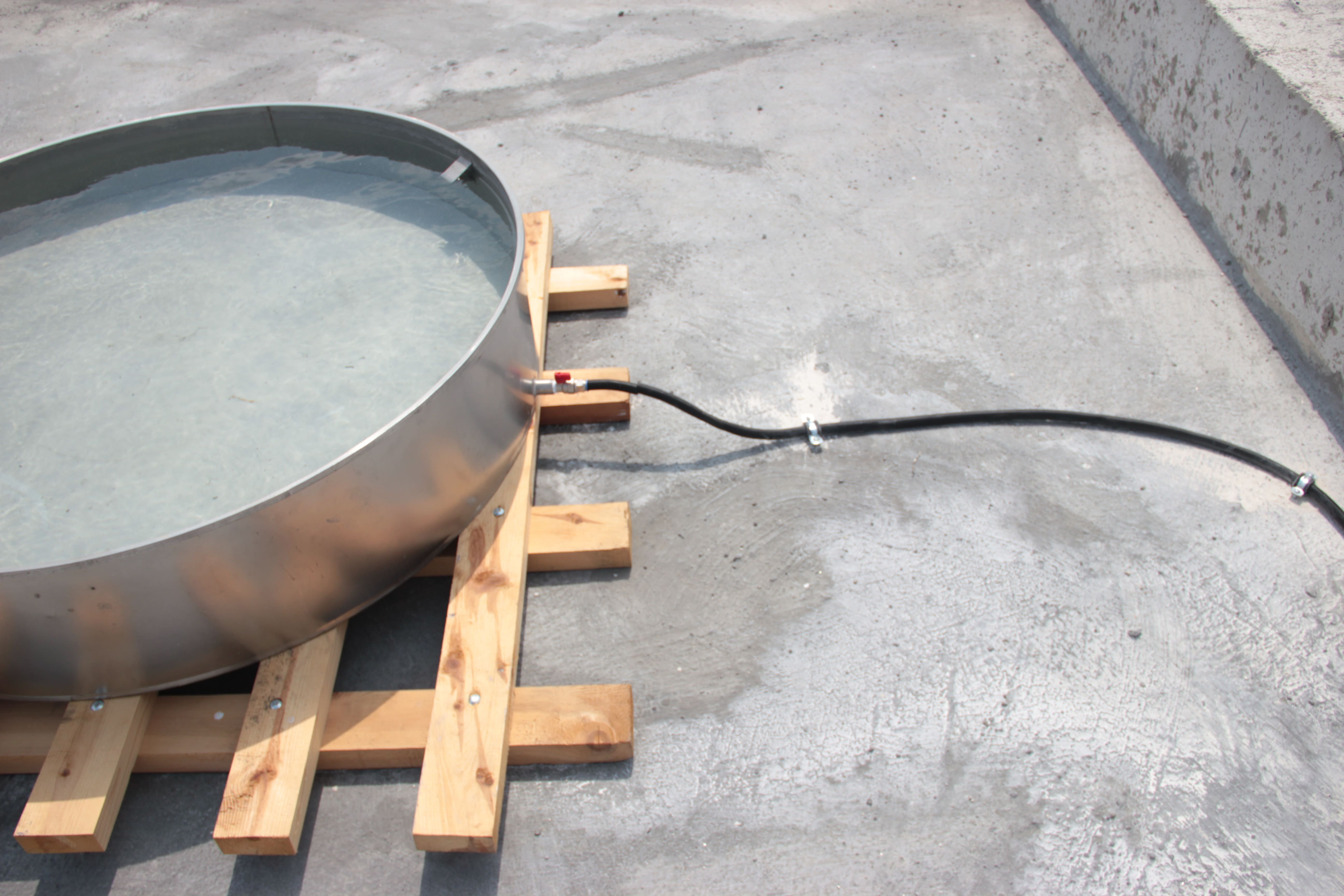

The Evaporation pan is used for the purpose of measuring the amount of evaporation on the water surface.
"Class A" is based on WMO standards.
It is used by meteorologists and water engineers in various parts of the world.
Evaporation pan is made of stainless steel. In addition, the wooden platform underneath is covered with protective white paint and made of black pine.
Depending on demand, the level sensor and modem for remote monitoring can be added.
| Evaporation Area | 1,143 m2 |
| Diameter | ø1207 mm |
| Height | 254 mm |
| Still well size | ø 120 mm, 245 mm |
| Total weight | ~24,5 kg |
| Material | AISI304 stainless steel |
| Wooden Platfrom | 1240x1240x150 mm |
| Wooden Platfrom Weight | ~43 kg |
